Yonatan Fedaeli: How to: Extract code from a dump file

Dump file -> WinDbg -> .Net Code

Introduction

Sometimes when we are debugging a Dump file analyzing a performance issue (e.g. Hang, Crash, Exceptions, memory pressure etc.) we don't necessarily possess the actual code (DLL, EXE) for any reason. (E.g. a friend sent us the dump file w/o its corresponding code)

In such cases, when we encounter a problem that requires examining the source code, it's possible to save the managed code to a file (managed binary), and then disassemble it using a de-compiler, such as: .Net Reflector, ILDASM, ILSpy etc.

In this post I'll demonstrate a simple process with a Hang issue (the process is exploiting lots of CPU time), and how to restore the source code from its corresponding Dump file.

I'll use the PSSCOR2 debugger extension.

Demo - planning

In this demo we'll perform the following:

1. Create a simple class.

2. Build the code.

3. Run the code.

4. Generate a Dump file using 'Task Manager'.

5. Open the Dump file in WinDbg.

6. Extract the code from the Dump.

7. Open the new EXE in a De-compiler.

8. Summary & Conclusions.

Demo

1. Create a simple class:

I've created the following simple class to illustrate a Hang issue, meaning the process is exploiting a lot of CPU time.

I named the file Demo1.cs, and saved it under: E:\MyCode\FromDumpFileToCode\Demo1.cs

- As you could see from the code above, it's a simple Main() method with an infinite 'while loop' that keeps incrementing a variable.

- This should cause a Hang issue in our process, since it's never advance to the next instruction, and always consume CPU time.

2. Build the code:

Next, I built the code using the C# compiler (csc.exe) in the 'Developer Command Prompt for VS2015'.

E:\MyCode\FromDumpFileToCode>csc Demo1.cs

Microsoft (R) Visual C# Compiler version 1.1.0.51204

3. Run the code:

I run the code and examined 'Windows Task Manager' and verified that the process is Hang.

As we could see from the image above, the Demo1.exe process is taking as much as 25% from the entire CPU usage, thus it's Hang.

4. Generate a Dump file using 'Task Manager':

After taking the Dump file, I terminated the process and opened WinDbg with the 'Demo1.DMP' dump file.

5. Open the Dump file in WinDbg:

I opened the 'Demo1.DMP' dump file and performed the following:

- Loaded symbols.

- Set symbols local path.

- Loaded the PSSCOR2 debugger extension (psscor2.dll).

- Loaded the CLR debugging modules (mscordacwks.dll).

0:000> .symfix

DBGHELP: Symbol Search Path:

DBGHELP: Symbol Search Path: cache*;SRV*http://msdl.microsoft.com/download/symbols

0:000> .sympath+ E:\MyCode\FromDumpFileToCode

DBGHELP: Symbol Search Path: cache*;SRV*http://msdl.microsoft.com/download/symbols;e:\mycode\fromdumpfiletocode

. . .

0:000> .load psscor2

0:000> .chain

Extension DLL search Path:

C:\Program Files\Windows Kits\8.1\Debuggers\x86\WINXP;

Extension DLL chain:

psscor2: image 2.0.0.1, API 1.0.0, built Wed Mar 24 21:24:57 2010

[path: C:\Program Files\Windows Kits\8.1\Debuggers\x86\psscor2.dll]

dbghelp: image 6.3.9600.17237, API 6.3.6, built Wed Jul 16 20:35:59 2014

[path: C:\Program Files\Windows Kits\8.1\Debuggers\x86\dbghelp.dll]

. . .

0:000> .cordll -ve -u –l

Automatically loaded SOS Extension

CLRDLL: Loaded DLL C:\Windows\Microsoft.NET\Framework\v4.0.30319\mscordacwks.dll

CLR DLL status: Loaded DLL C:\Windows\Microsoft.NET\Framework\v4.0.30319\mscordacwks.dll

0:000> !Threads

ThreadCount: 2

UnstartedThread: 0

BackgroundThread: 1

PendingThread: 0

DeadThread: 0

Hosted Runtime: no

Lock

ID OSID ThreadOBJ State GC Mode GC Alloc Context Domain Count Apt Exception

0 1 1098 002952c0 2a020 Cooperative 01CD271C:00000000 0028d4a8 0 MTA

2 2 1a1c 002a2050 2b220 Preemptive 00000000:00000000 0028d4a8 0 MTA (Finalizer)

6. Extract the code from the Dump:

We are using the PSSCOR2 '!SaveModule' command to save the code from the Dump file to new EXE file.

The !SaveModule command takes 2 parameters:

1. Base Address

- We could find the image base address using the 'LM' debugger command.

- Alternately, we could use the module name, as it appears in the 'LM' command output.

2. File Name (and path)

First, we'll list the loaded modules, and copy the module base address:

0:000> lm

start end module name

010c0000 010c8000 Demo1 (deferred)

50ff0000 516a1000 clr (pdb symbols) C:\ProgramData\dbg\sym\clr.pdb\1C6AD585F62042AEB690C4C105CB9B962\clr.pdb

53000000 530f5000 MSVCR120_CLR0400 (deferred)

6aef0000 6af69000 mscoreei (deferred)

6af70000 6afba000 mscoree (deferred)

6c420000 6c49e000 clrjit (deferred)

6dfe0000 6e01f000 snxhk (deferred)

. . .

76f30000 7706c000 ntdll (pdb symbols) C:\ProgramData\dbg\sym\ntdll.pdb\CD4062A231154A17A18DAE7D1A0FBACC2\ntdll.pdb

77090000 77159000 user32 (deferred)

79240000 7a38a000 mscorlib_ni (deferred)

Next, we'll run the !SaveModule command, with the Base address and a File Name to save the new generated EXE file:

0:000> !SaveModule Demo1.exe E:\MyCode\FromDumpFileToCode\Code\NewDemo1.exe

3 sections in file

section 0 - VA=2000, VASize=4d8, FileAddr=200, FileSize=600

section 1 - VA=4000, VASize=4ac, FileAddr=800, FileSize=600

section 2 - VA=6000, VASize=c, FileAddr=e00, FileSize=200

We could see from the command output that the operation was successful, and we could find the new generated executable (source code) in the desired folder:

E:\MyCode\FromDumpFileToCode\Code>dir /b

NewDemo1.exe

7. Open the new EXE in a De-compiler:

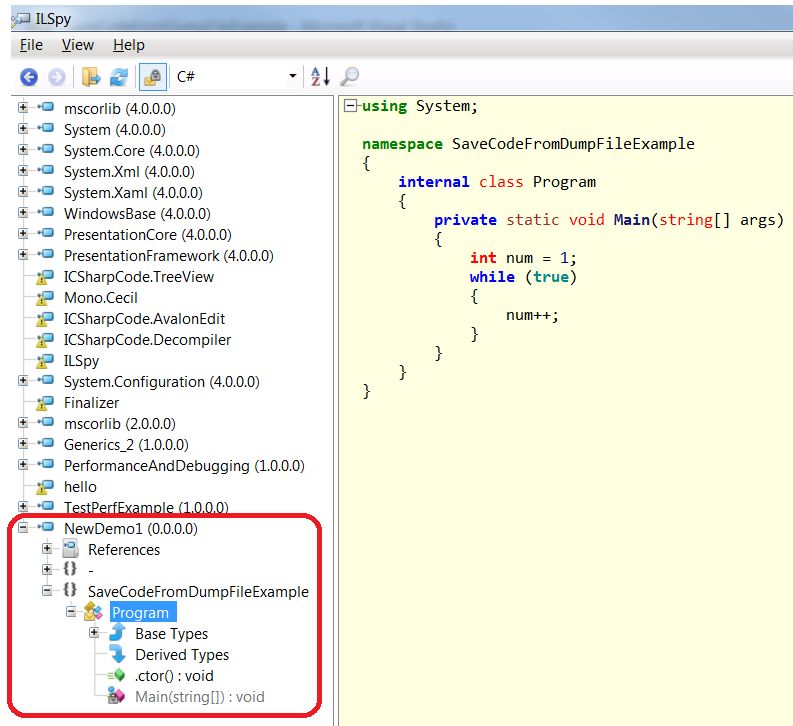

In this example I used ILSpy and was able to review the C# code of the problem I encountered in the Dump file.

This could help resolving the issue.

Summary & Conclusions

We learned & demonstrated how to extract the managed source code from a Dump file and saved it to a binary file, in cases we don't have the original code and we need to explore it.

We performed it using the PSSCOR2 debugger extension, using the !SaveModule command.

The End

Hope you enjoyed!

Appreciate your comments…

Yonatan Fedaeli
